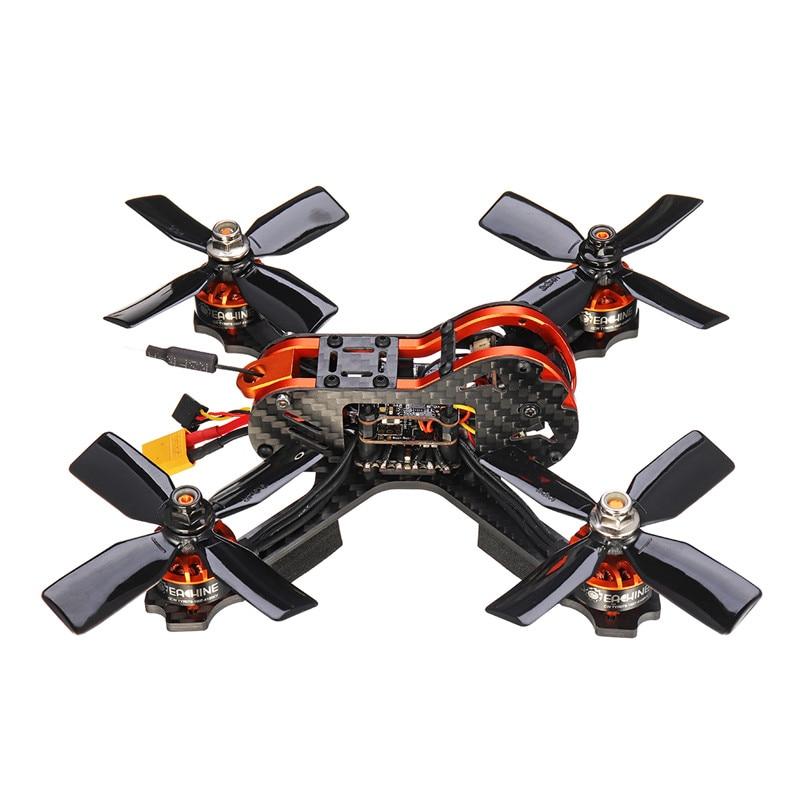

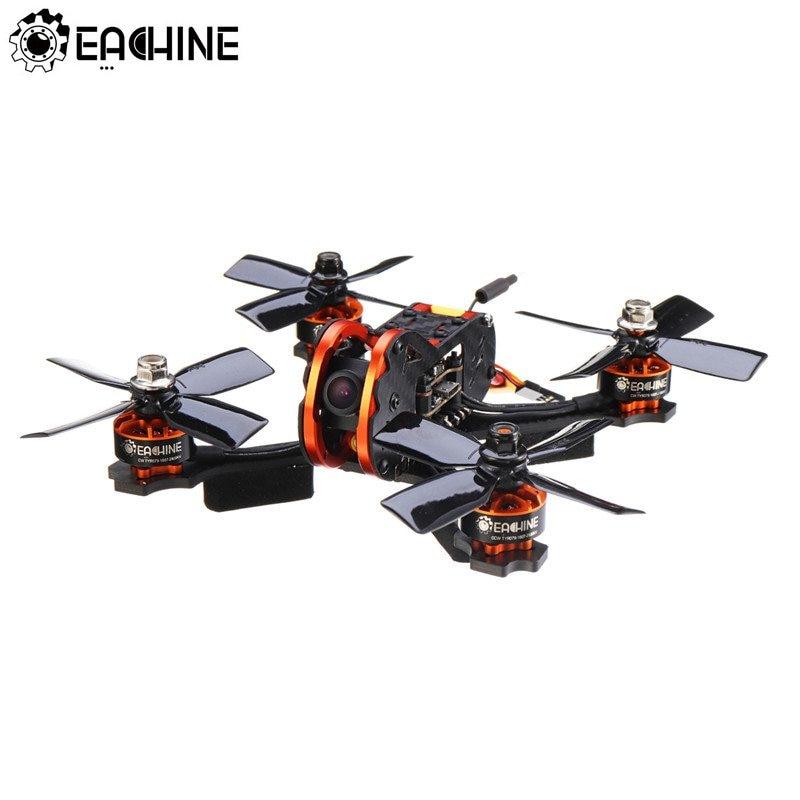

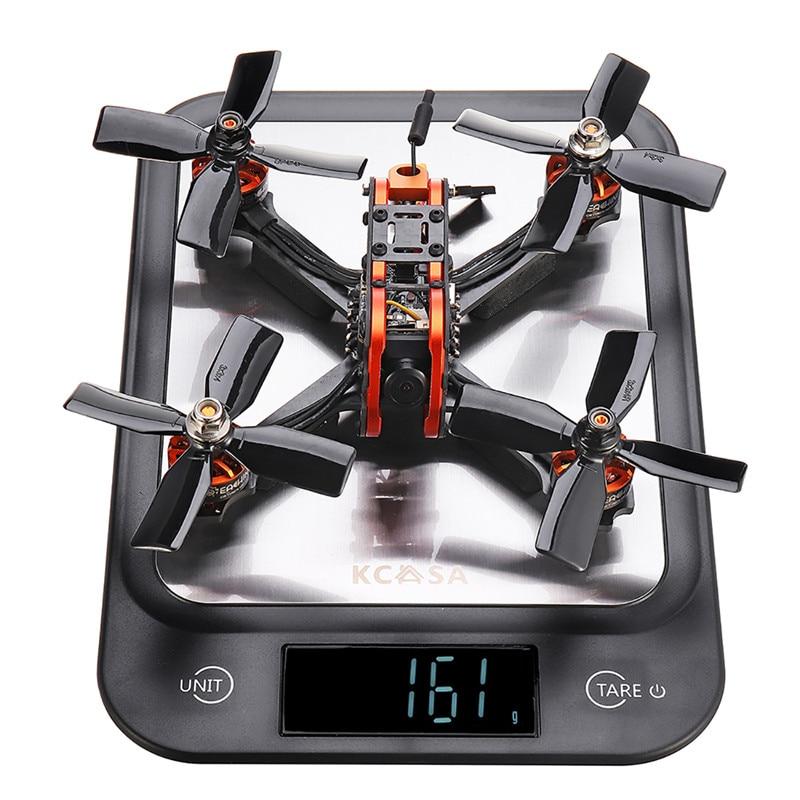

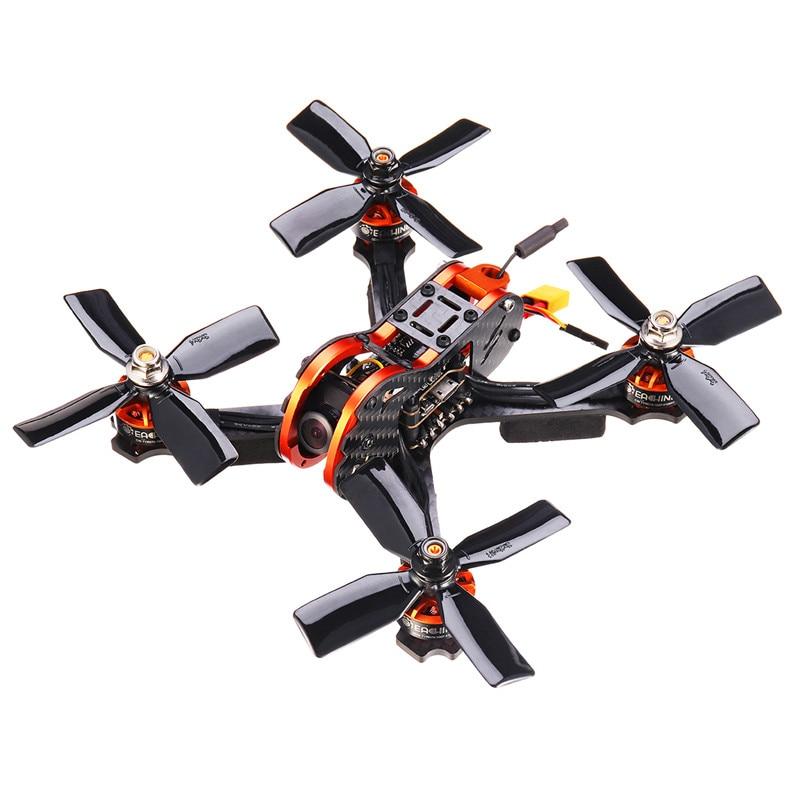

FPV Racing Drone
Have fun flying FPV Racing Drone!
With a sleek look and foldable design, the FPV Racing Drone is the newest in stealth and versatility without breaking the bank. The unique design brings both power and easy user control in one impressive package. Strong and durable, hight quality product. Grab your FPV Racing Drone while the Store LAUNCH
DISCOUNT is on!
FEATURES:
- Weight: 17.8g (includes wires)
- Camera lens: standard 2.1mm
- Exposure mode: electron exposure
- Electronic shutter: 1/50(1/60) - 1/100000 S
- Gamma correction: 0.45/1.0
- Lens operating voltage: DC 5-12V
- Working current: 70mA (low power consumption)
- Working temperature: -20℃~-60℃
- Flight Controller Weight: 24g
| Item |
Specification |

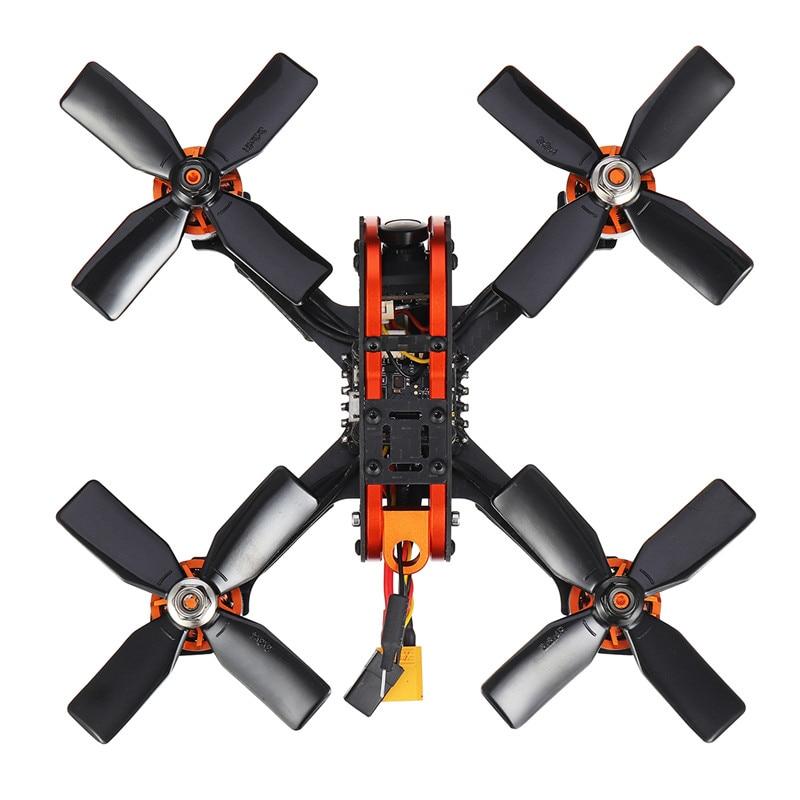

| 140mm Racing Frame Kit |
Wheel base: 140mm
Frame arm thickness: 3mm
Upper plate thickness: 1mm
Side plate thickness: 1mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium
|
| 1607 2800KV 2-4S Brushless Motor |
KV: 2800KV
Lipo cell: 2-4S
Weight: 17.8g (includes wires)
Output shaft length: 14mm
Maximum pull: signal 630g (4S 3030 4-blade propeller)
Maximum power: 350W
Configu-ration: 9N/12P
Mounting holes distance: 12*12mm
Mounting holes: φM2
Bearing: NSK
N52 Strong NdFeB Magnet
Recommend propeller: 3 inch
|
| 4 IN 1 20A BLHeli_S ESC |
Continuous current: 20A
Pe ak current: 25A (10S)
BEC output: no
Input voltage: 2-4S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125
MOS: 3*3
MOS type: vs3610ae 30v64a
|
| Customized F4 Flight Controller |
Main control chip: STM32F411
Sensor: ICM20602 6-axis
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 20*20mm
Weight: 24g
PID circulation rate and refresh rate can up to 32kHz
Supports Betaflight/cleanflight/inav firmware
|

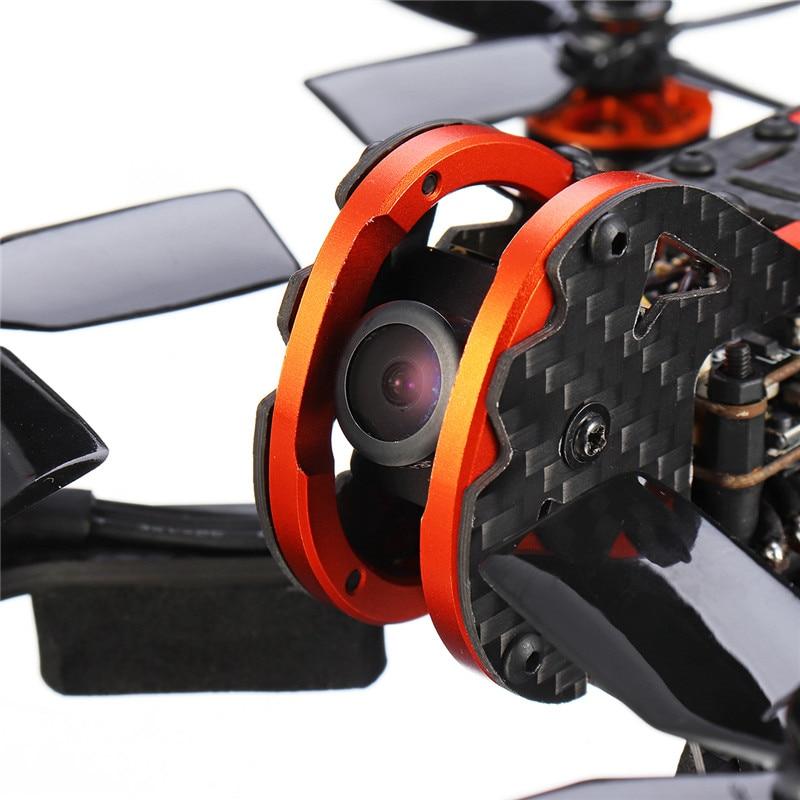

| 700TVL CMOS Camera |
Case size: 19mm*19mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: off
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 5-12V
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98%
|
| 5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
Make sure the antenna is installed at the output end before powering up to avoid damaging internal components.
|
| 3030 4-blade propeller |
Material: PC
Mounting hole: 5mm
Center thickness: 6mm
Quantity: 10 pairs
Color: black, red, yellow, green
Weight: 5g a pair
Delivery color randomly (10 pairs of propellers are the same color)
|
| Lipo Battery |
Not included \nRecommend 2-3S 450-650mah |
Package included:
1 x 140mm racing frame kit
2 x 1607 2800KV brushless motor CW
2 x 1607 2800KV brushless motor CCW
1 x 4 IN 1 20A BLHeli_S ESC
1 x Customized F4 flight controller
1 x 700TVL CMOS camera
1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX
2x 3030 4-blade propeller CW
2 x 3030 4-blade propeller CCW
